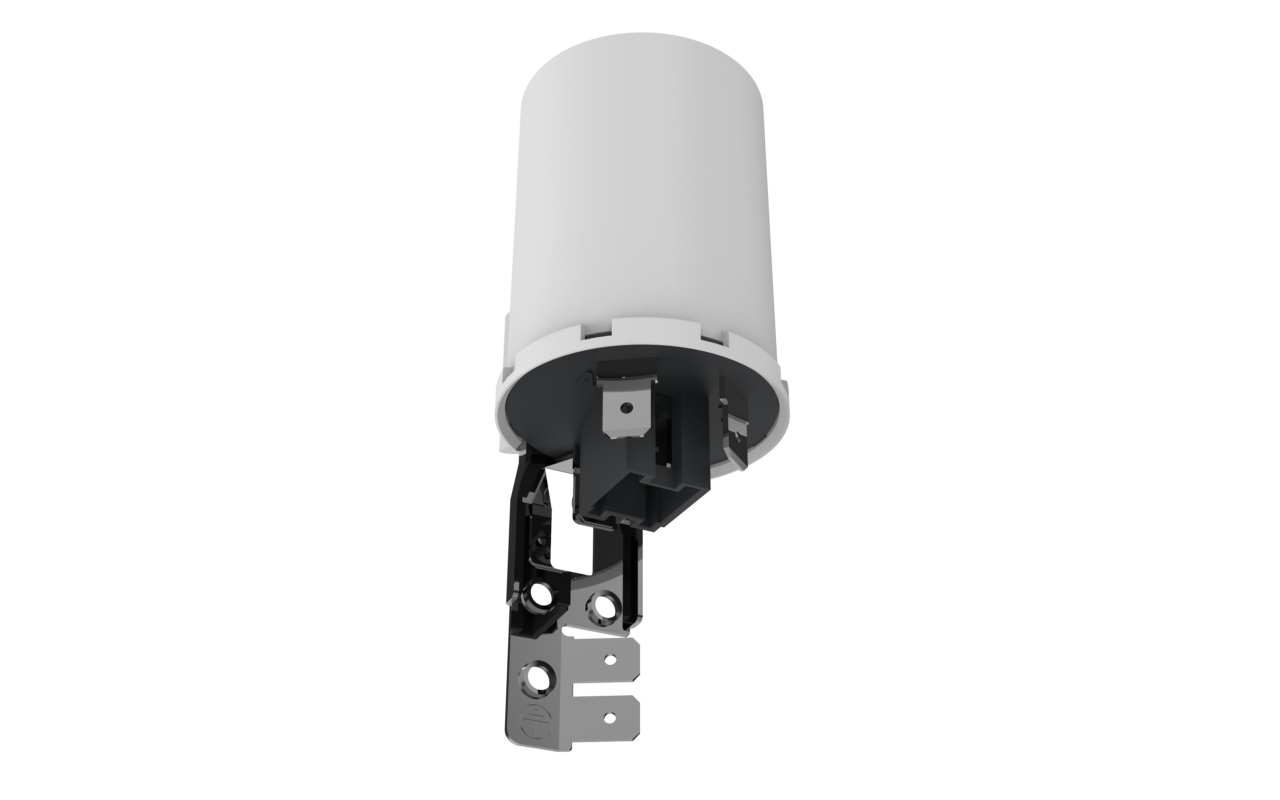

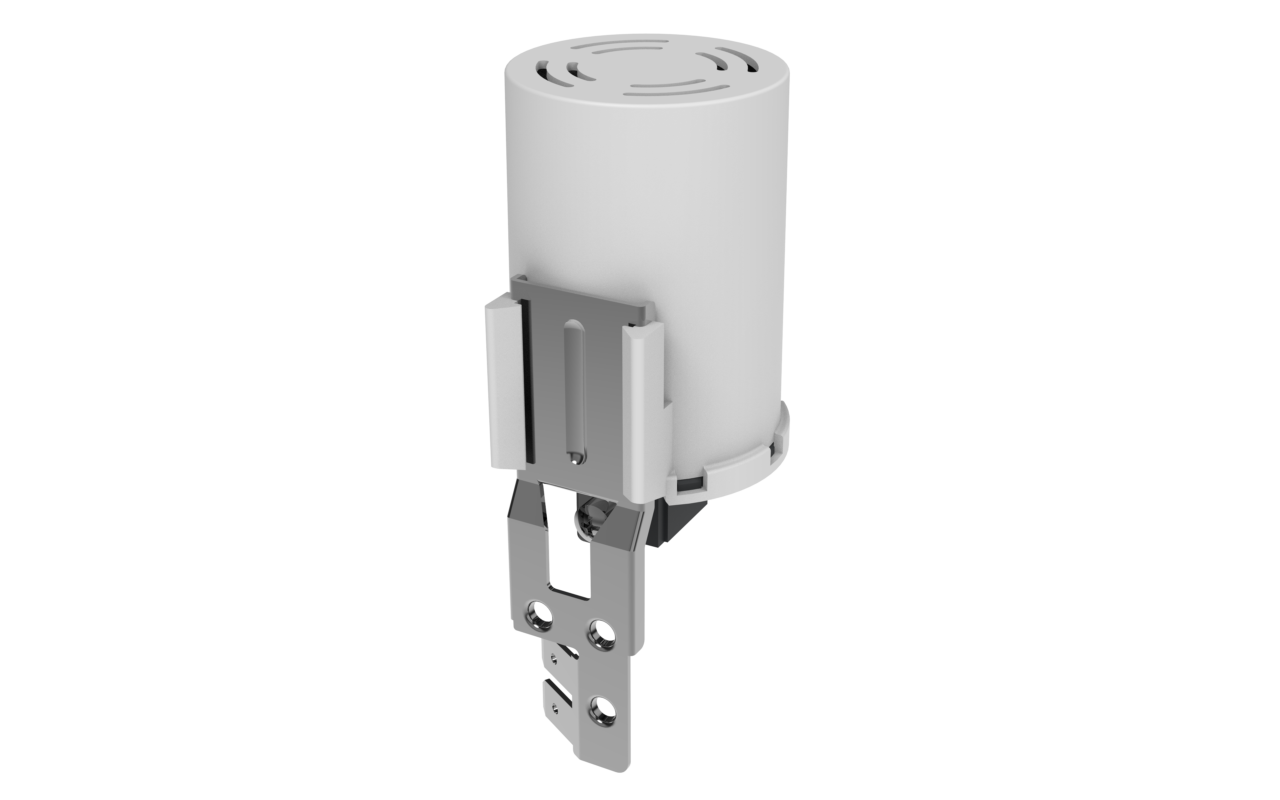

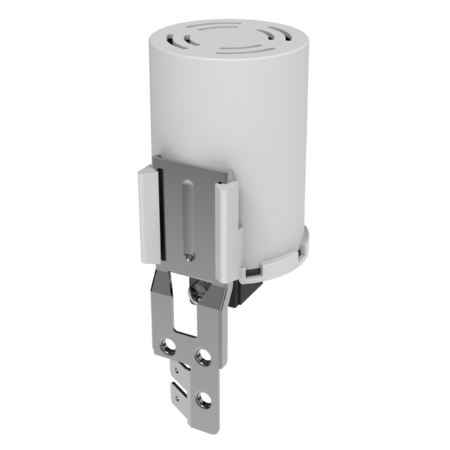

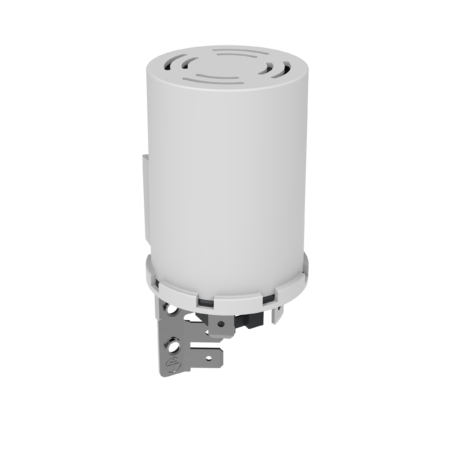

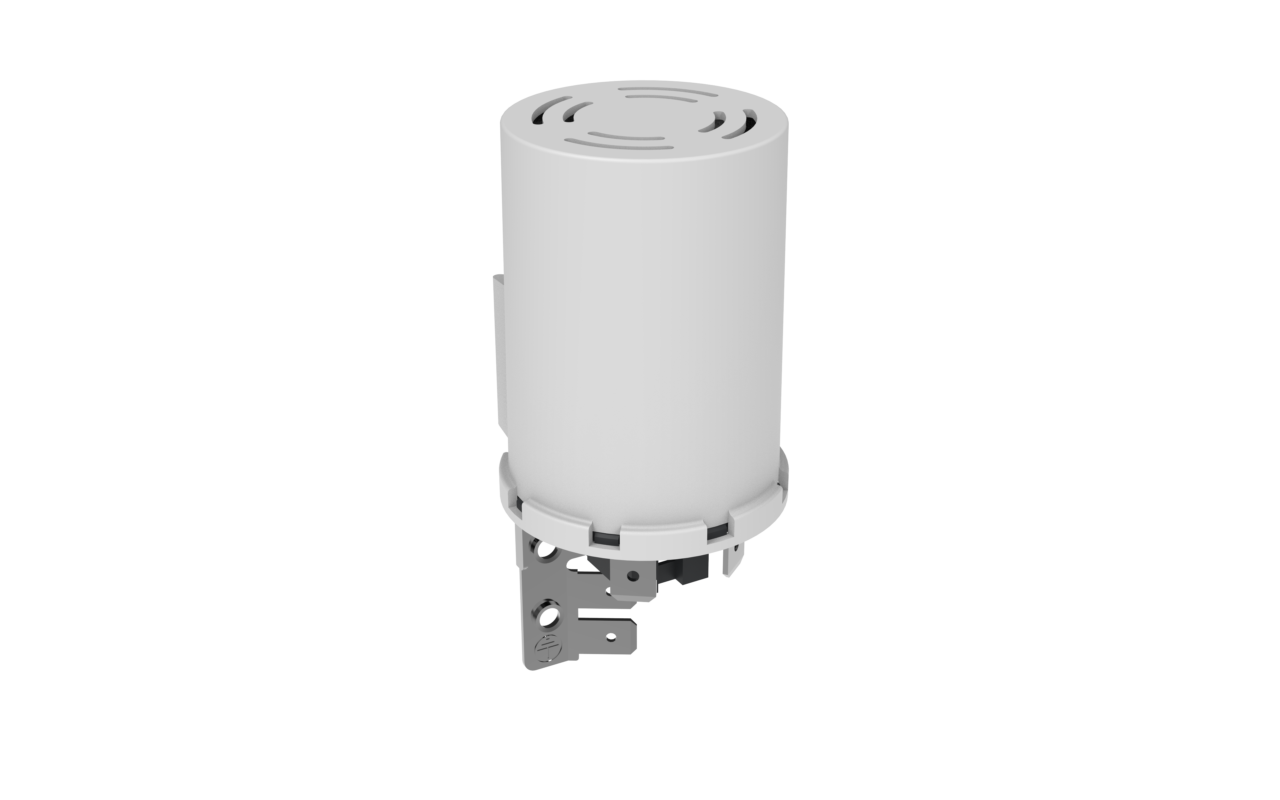

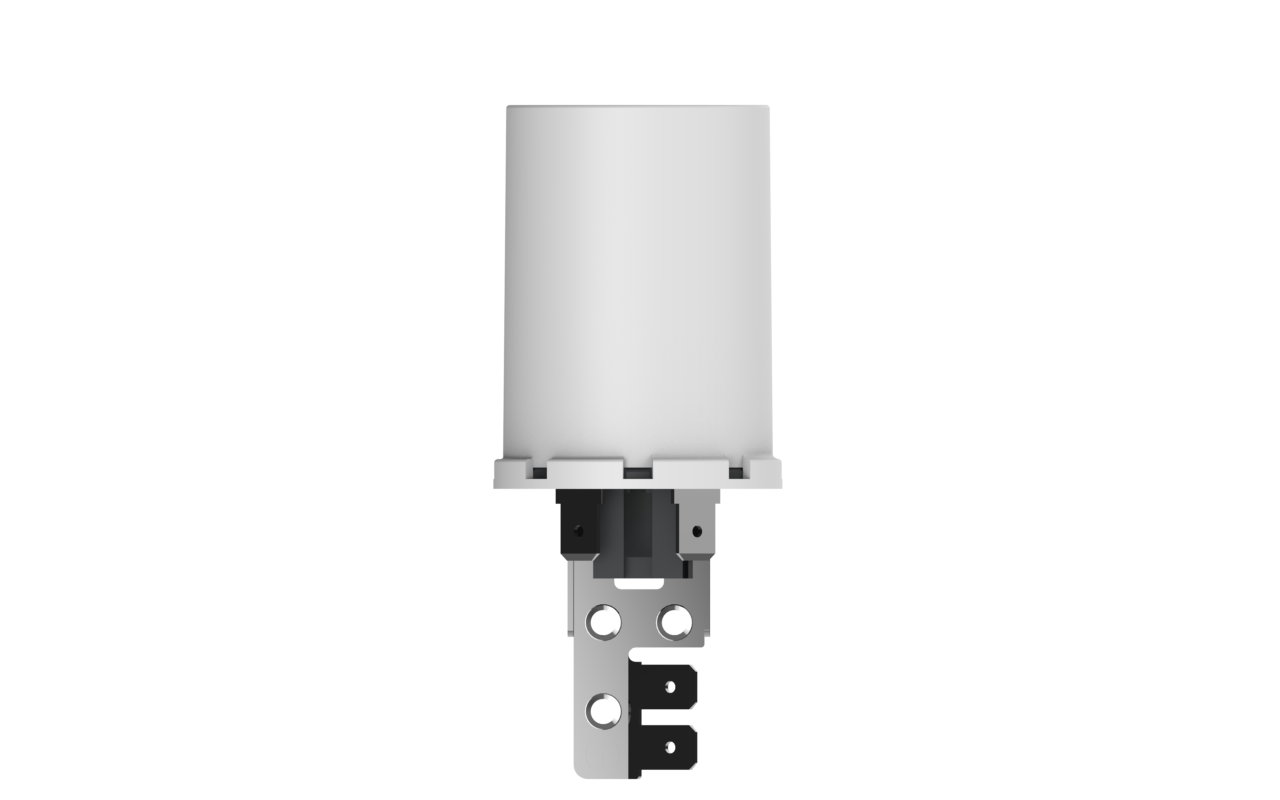

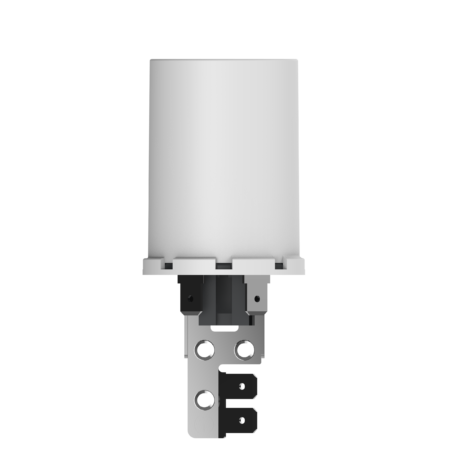

LOW CURRENT FILTERS
Serie: FR5H
Capacitive/inductive filter, general purpose
ELECTRICAL CHARACTERISTICS
Value range
0,33MΩ ≤ R ≤ 0,68MΩ
0,1 μF ≤ CX = 1,5 μF
2,7 nF ≤ CY ≤ 27nF
0,5mH ≤ L ≤ 2,0 mH
Rated voltage (VR)
250V
Rated current (IR) @ 40°C
10A ≤ I ≤ 16A
Mounting
Metal bracket
MECHANICAL CHARACTERISTICS
Housing
Plastic housing 38×56 mm
Terminals
Faston rast 5

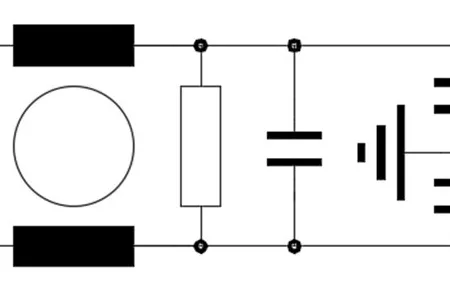

ELECTRICAL DESIGN

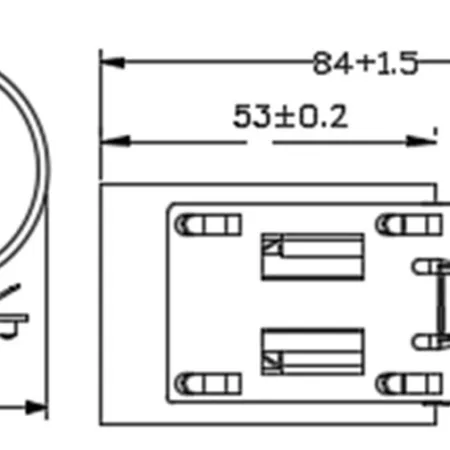

MECHANICAL DESIGN
