LOW CURRENT FILTERS
Line: FLCH
Capacitive/inductive filter, general purpose
ELECTRICAL CHARACTERISTICS
Value range
0,68MΩ ≤ R ≤ 10MΩ
CX = 1,0 μF
2,7 nF ≤ CY ≤ 27nF
0,5mH ≤ L ≤ 2,0mH
Rated voltage (VR)
250V
Rated current (IR) @ 40°C
10A ≤ I ≤ 16A
Mounting
Metal bracket/M8 threaded stud
MECHANICAL CHARACTERISTICS
Housing
Plastic housing 38×56 mm
Terminals
Faston

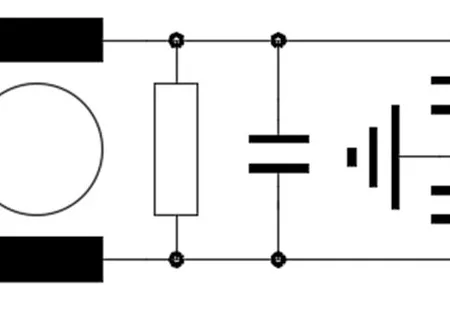

ELECTRICAL DESIGN
MECHANICAL DESIGN
