LOW CURRENT FILTERS
Line: FCPC/FLPC
Capacitive/inductive filter
ELECTRICAL CHARACTERISTICS
Value range
1MΩ ≤ R ≤10MΩ
0,1μF ≤ CX ≤ 0,27μF
2,7nF ≤ CY ≤ 27nF
1A ≤ L = 0,5mH ≤ 3A
Rated voltage (VR)
250V
Rated current (IR) @ 40°C
I ≤ 3A
Mounting
Metal bracket
MECHANICAL CHARACTERISTICS
Housing
Plastic housing
41x21x74mm
Terminals
Cable

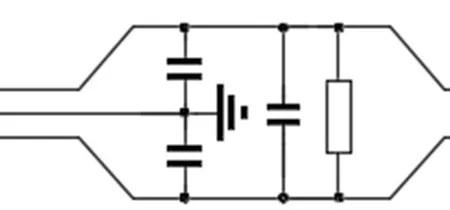

ELECTRICAL DESIGN

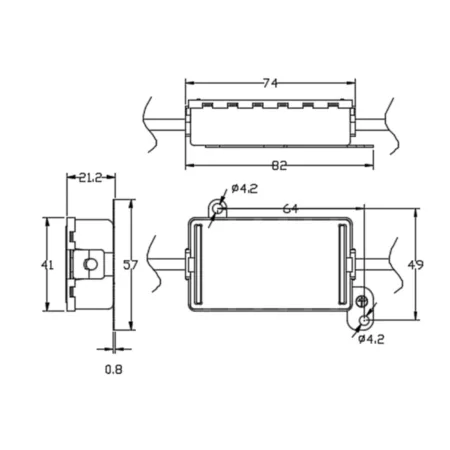

MECHANICAL DESIGN
